TF/PL

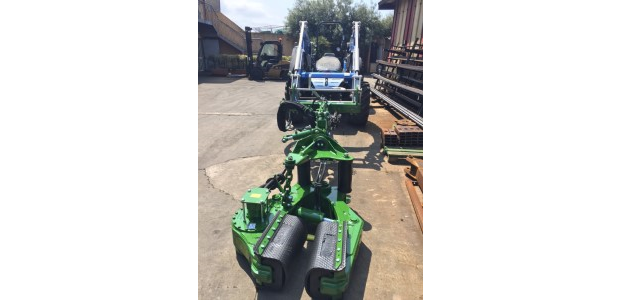

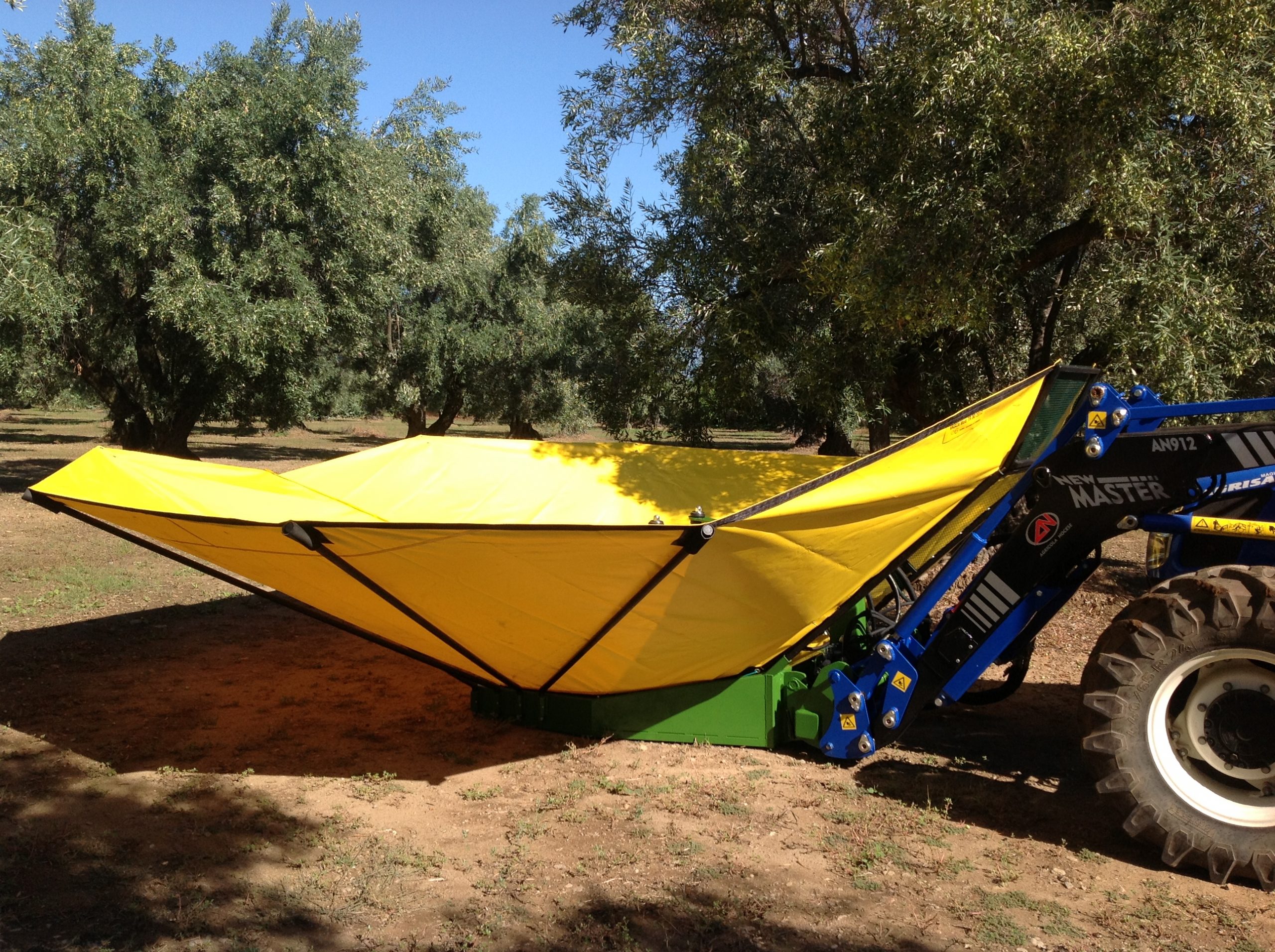

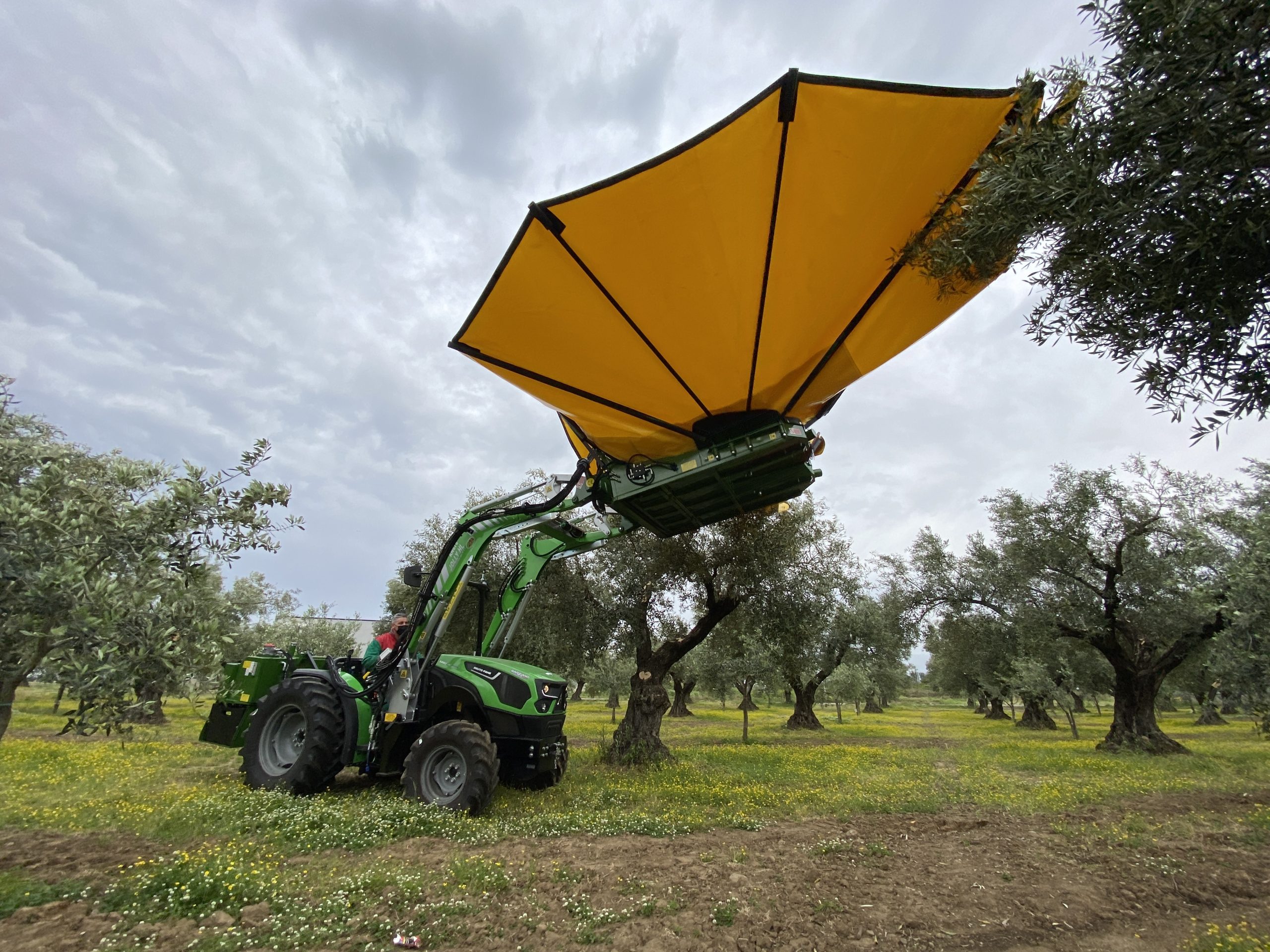

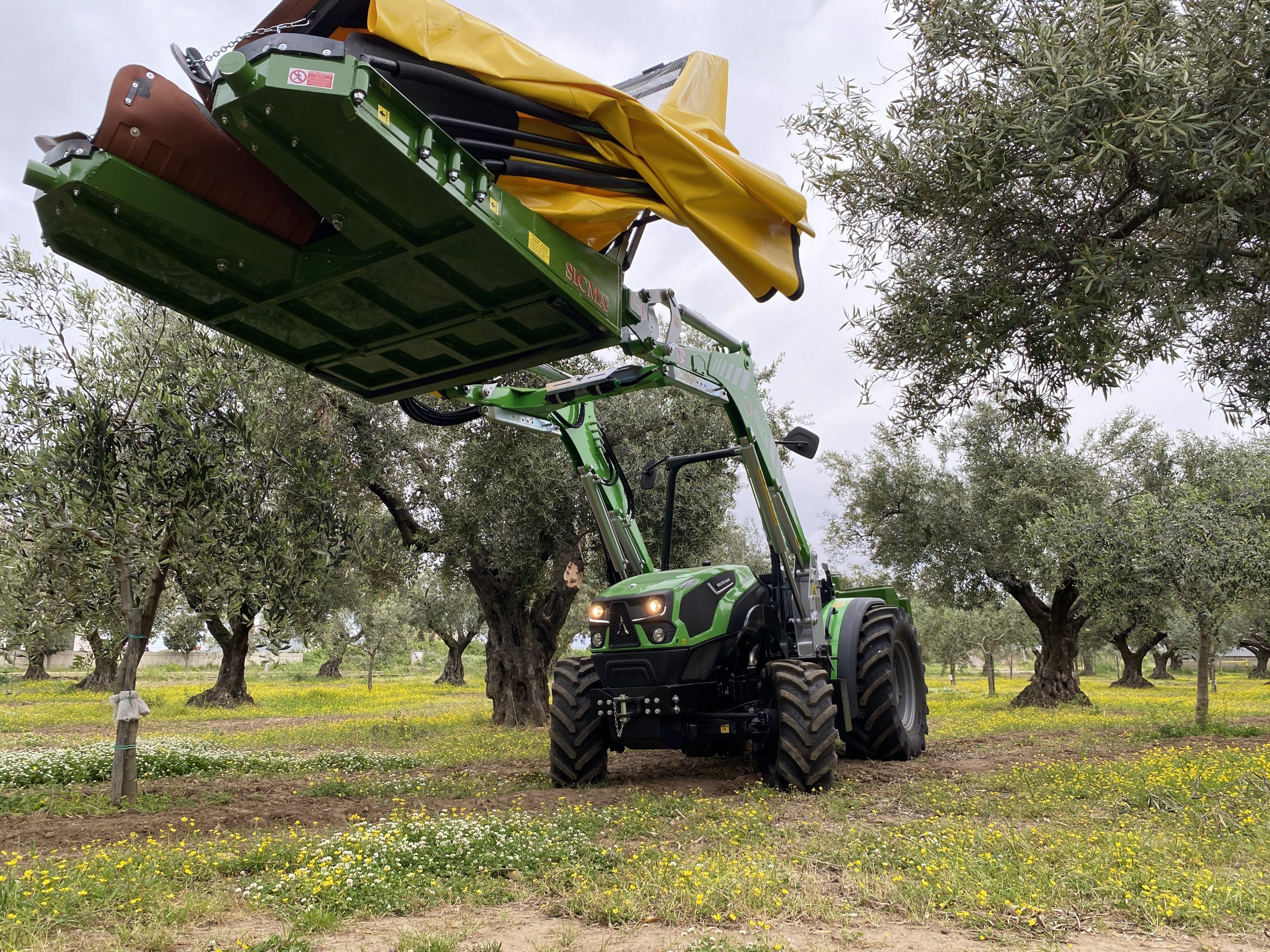

It is the harvesting kit with vibrating head and reverse umbrella (optional) coupled to tractors already equipped with front loaders (i.e. loader shovel). Provided with an independent hydraulic circuit (with the rear oil tank), it is activated by the tractor’s PTO. It is the best solution to take advantage of the existing loader’s frame of the drive unit, turning it into a combined harvester. The unload of the fruits from the case takes place through the hydraulically controlled hatch at the bottom of the case. The kit is suitable for medium density orchards, grown with single trunk (if equipped with umbrella) up to 45 cm diameter. By releasing the umbrella, it can operate only with the vibrating head.

Versatility and efficiency by Sicma...

TECHNICAL CHARACTERISTICS:

VIBRATING HEAD: New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
REVERSE UMBRELLA (IF PRESENT): Ø 5, 6 or 7 m
CASE CAPACITY (IF PRESENT): 250 Kg
CONTROLS: Electro-hydraulic joystick
HYDRAULIC CIRCUIT: Closed hydraulic circuit composed by vibration pump, services pump and electrohydraulic valves. Hydraulic oil tank separated from the tractor circuit. Actuated by the cardan power shaft PTO (540 rpm)

SIZE & WEIGHT:

TOTAL LENGTH: 2.400 mm (case - loader chassis connection plate)
MAX WIDTH: 2.100 mm
TOTAL WEIGHT: 1.200 kg (full oil circuit)
MAX UNLOADING HEIGHT: According to the tractor and loader chassis.

OPTIONAL:

    • Electronic Joystick
    • Umbrella and case
    • Vibrating head
  •

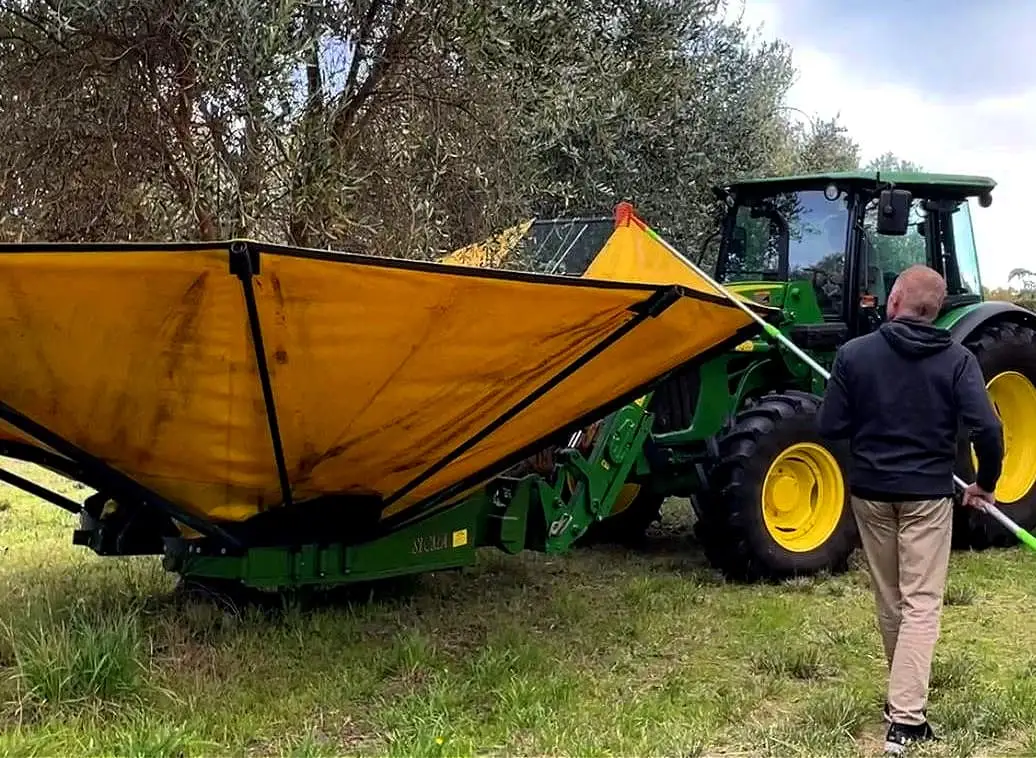

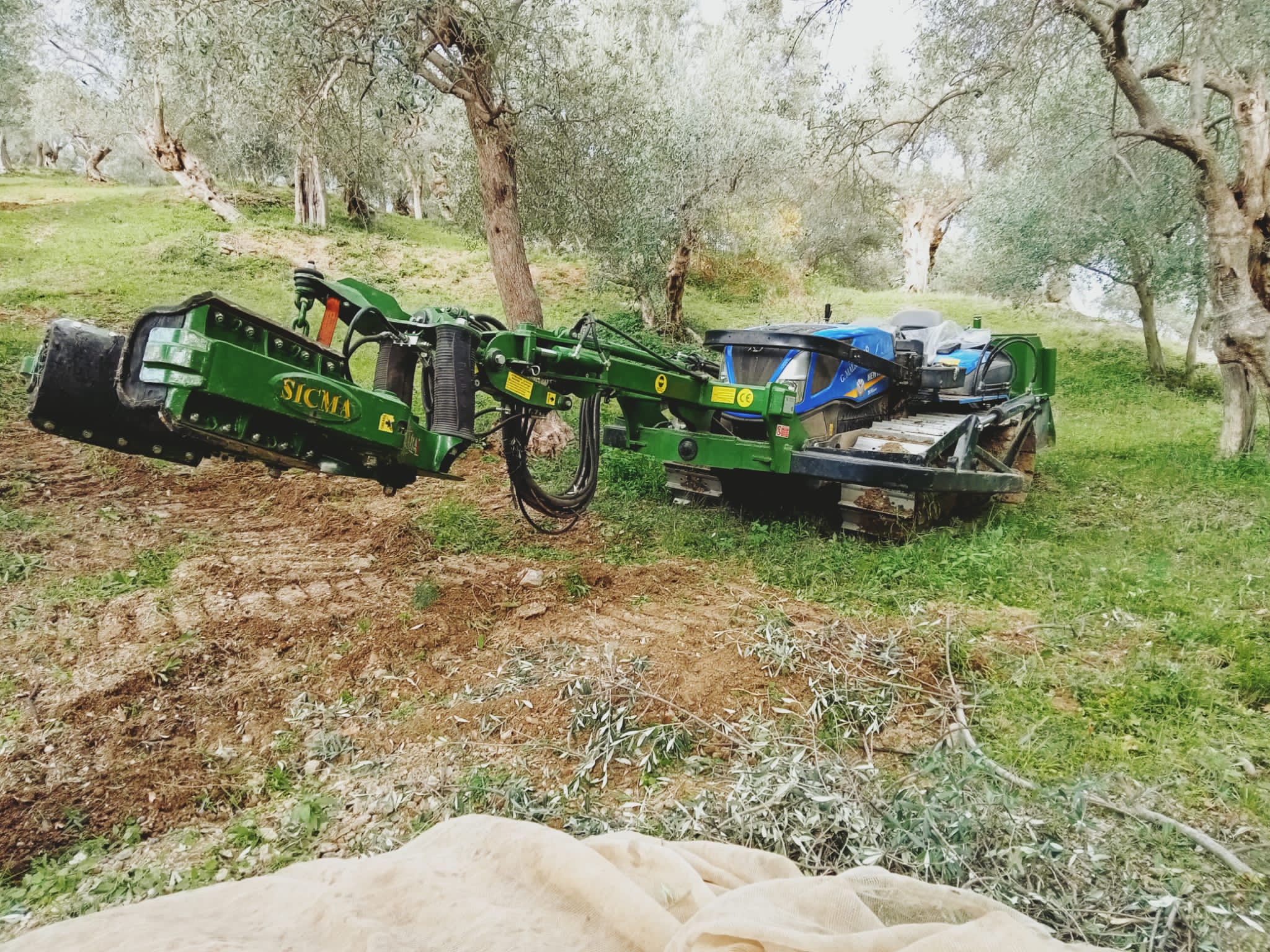

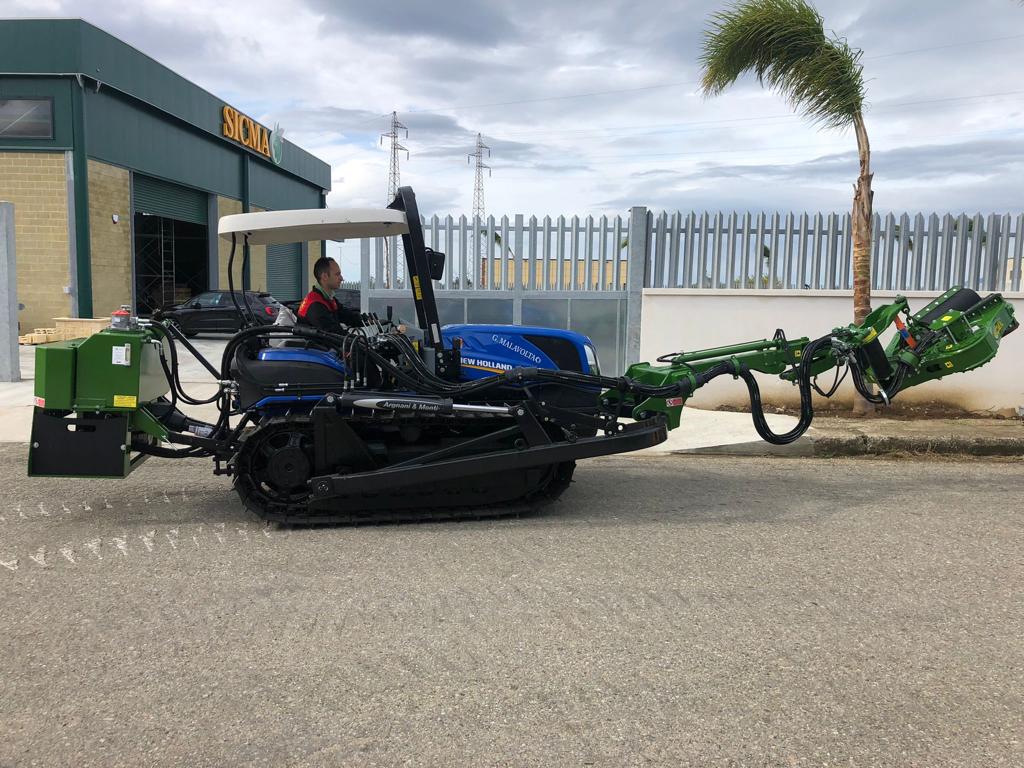

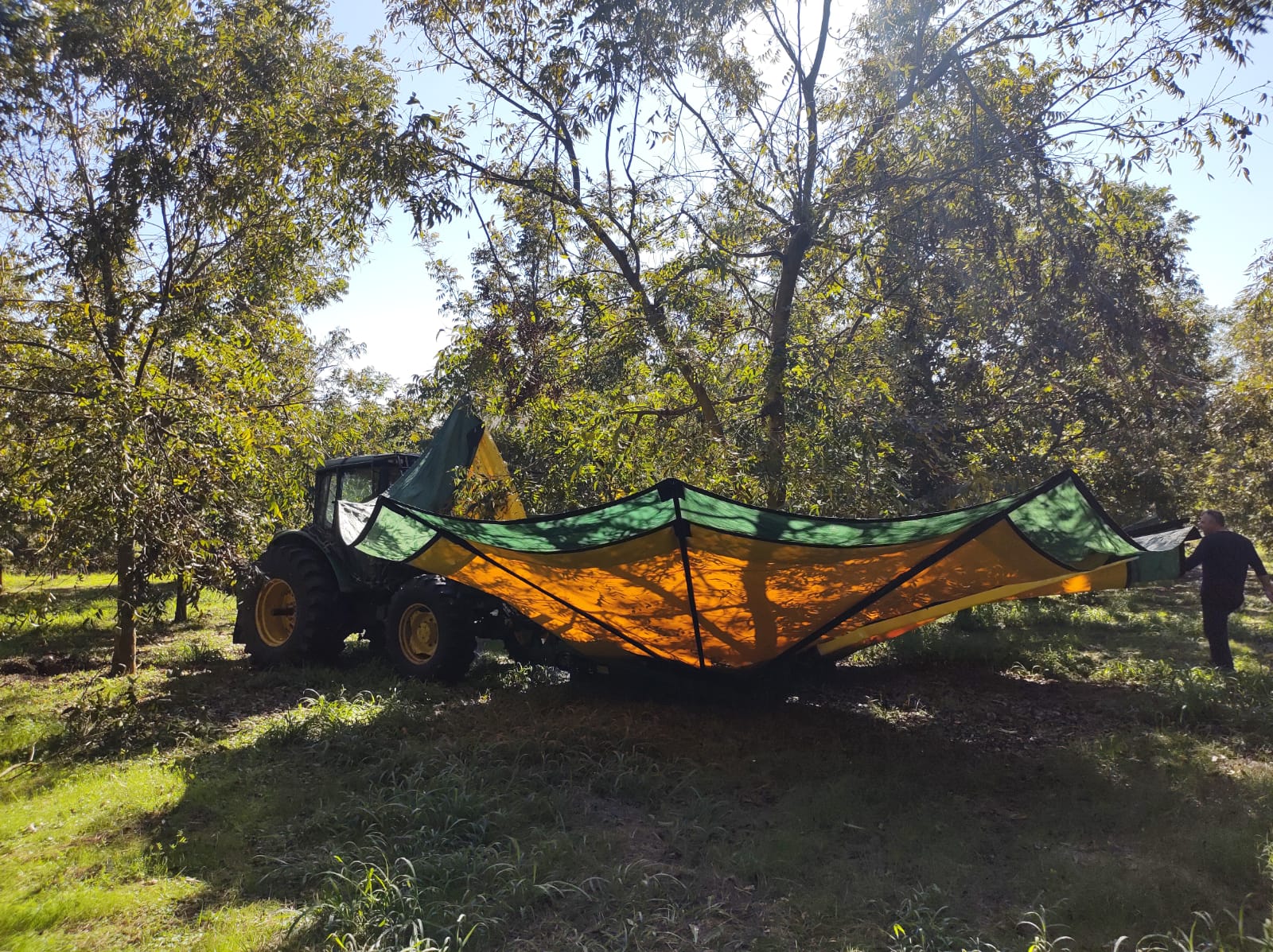

Photogallery TF/PL
