TF80

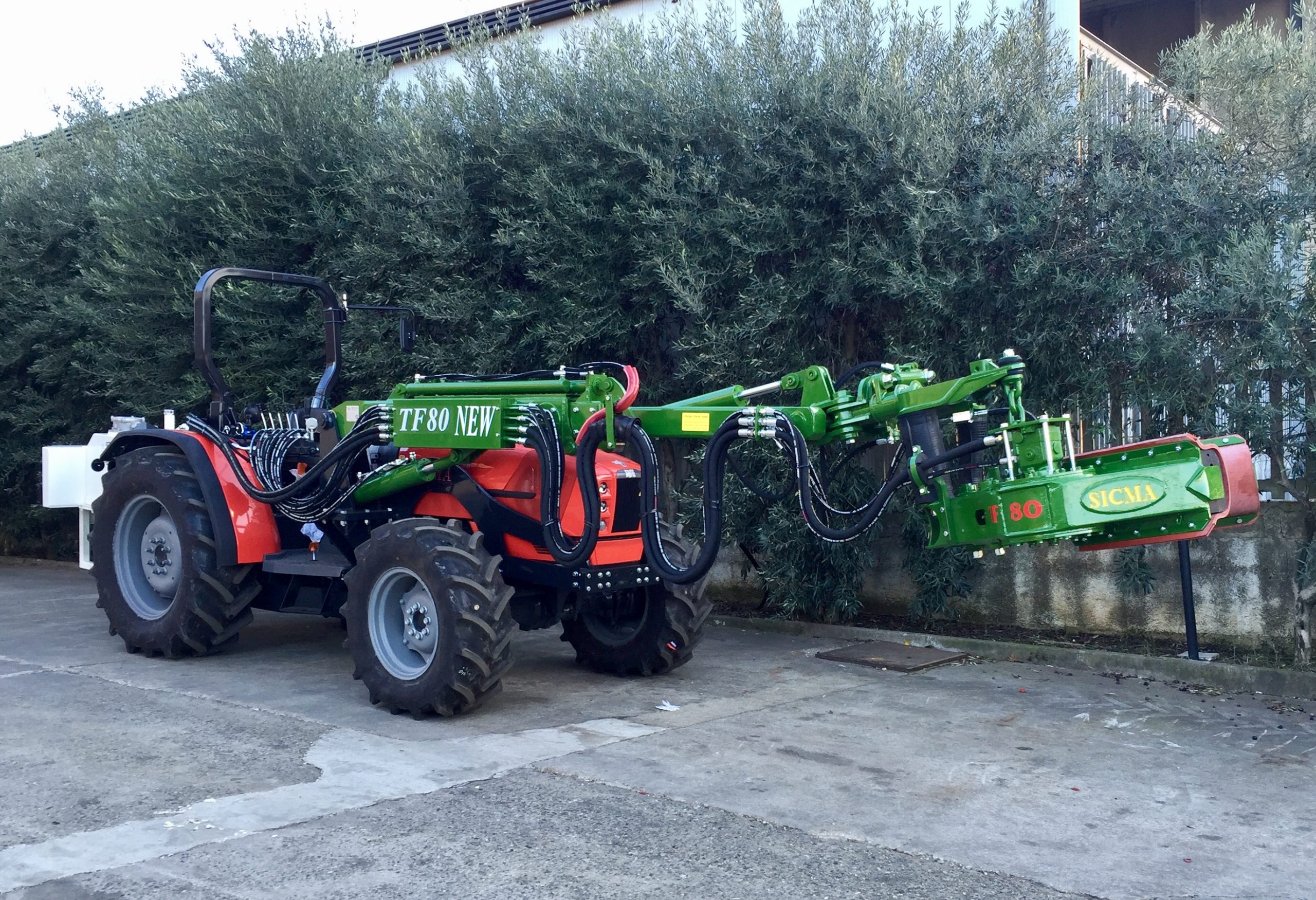

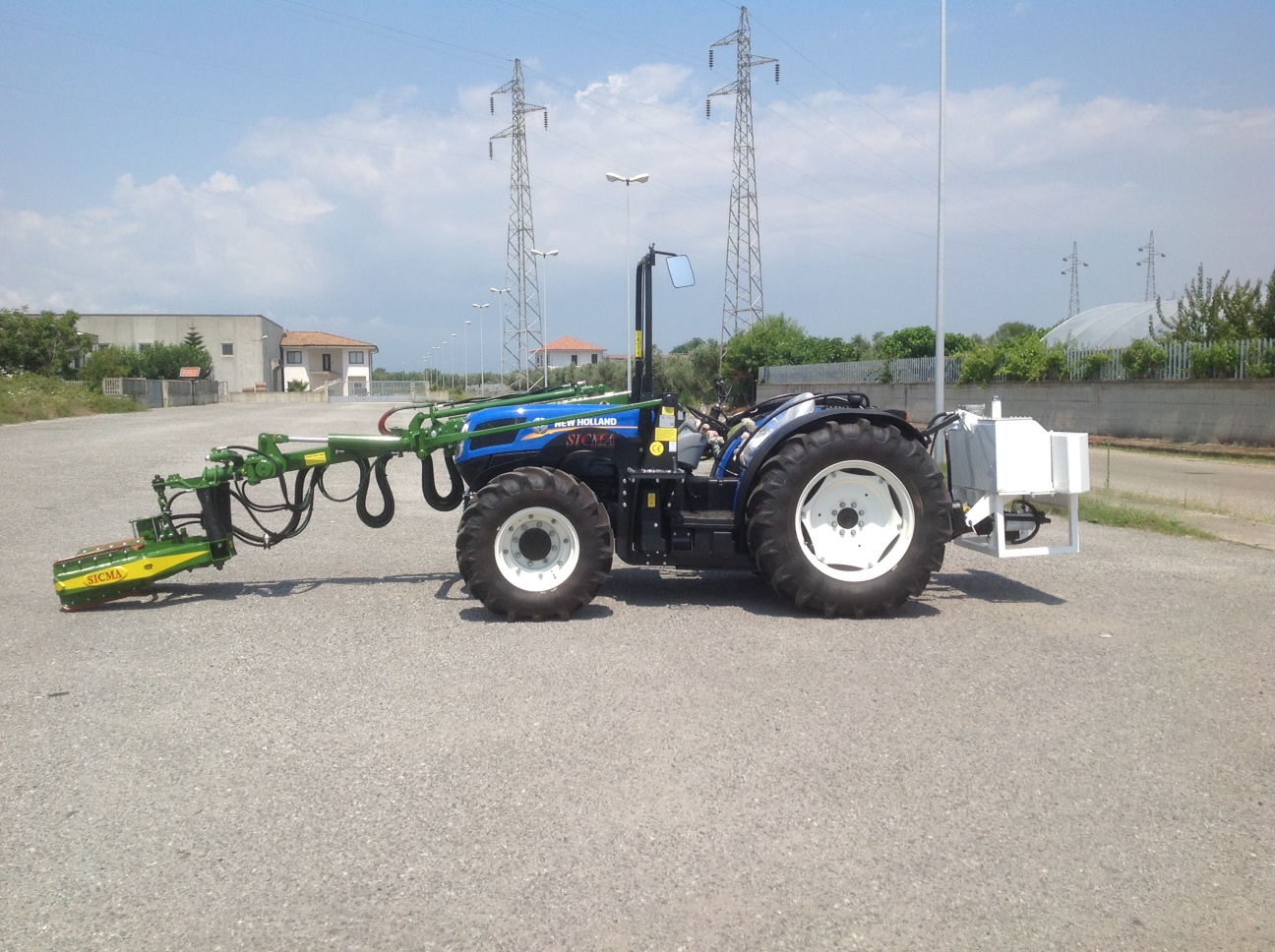

TF80 is the frontal telescopic single arm mounted on tractors (wheeled or tracked) for the harvest of both young and centuries-old trees. The TF80 is coupled to the tractor by a double reinforced frame fixed on the drive unit chassis. Equipped with an independent hydraulic circuit (with rear oil tank), it is operated by the tractor's PTO, of at least 80 HP. The frontal and single arm guarantees the best visual to the operator who can easily control the kit by the hydraulic lever distributor or by the joystick (optional). The New Generation Vibrating head with double jaws oscillates in any direction in the space to guarantee the proper tightening of the perennial wooden organs and in all conditions, up to 5.5 m height. Ideal for both young and centuries-old trees, it cannot be coupled with the reverse umbrella.

The latest generation of the highly specialized telescopic vibrating arm, solid and effective ...

TECHNICAL CHARACTERISTICS:

HOOKING & ACTUATION: Chassis (sheets of 20 mm) and cardan power shaft (PTO 540)
TELESCOPIC ARM: Triplex or standard
VIBRATING HEAD: New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
CONTROLS: Hydraulic distributor with 6 levers and electric switch
HYDRAULIC CIRCUIT: Closed hydraulic circuit composed by vibration pump, services pump and electrohydraulic valves. Hydraulic oil tank separated from the tractor circuit. Actuated by the cardan power shaft PTO (540 rpm)

SIZE & WEIGHT:

TOTAL LENGTH: 3.500 mmm (centerwheel-jaw extremity extended arm)

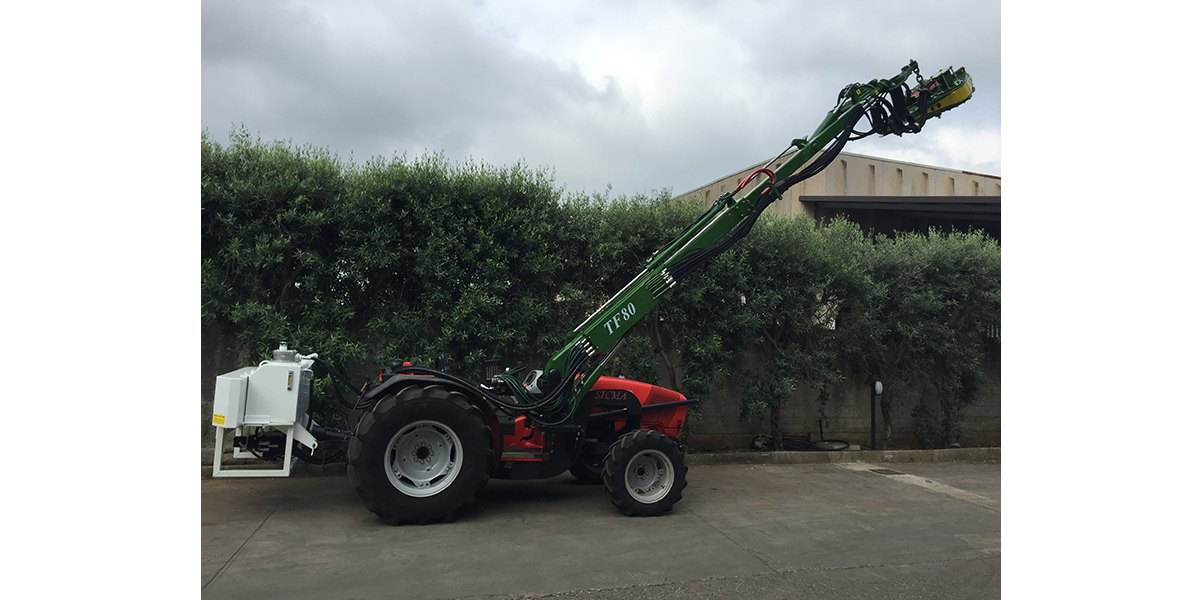

MAX HEIGHT: 6.000 mm with totally extended arm; 4800 mm with extended arm and horizontal head
TOTAL WEIGHT: 2.280 kg (including the chassis of the tractor)

OPTIONAL:

    • Electronic Joystick (mandatory for tractors with cabin)
    • Electro-hydraulic joystick
    • Frontal hydraulic stabilizers
    • Only chassis for loader shovels
