F3

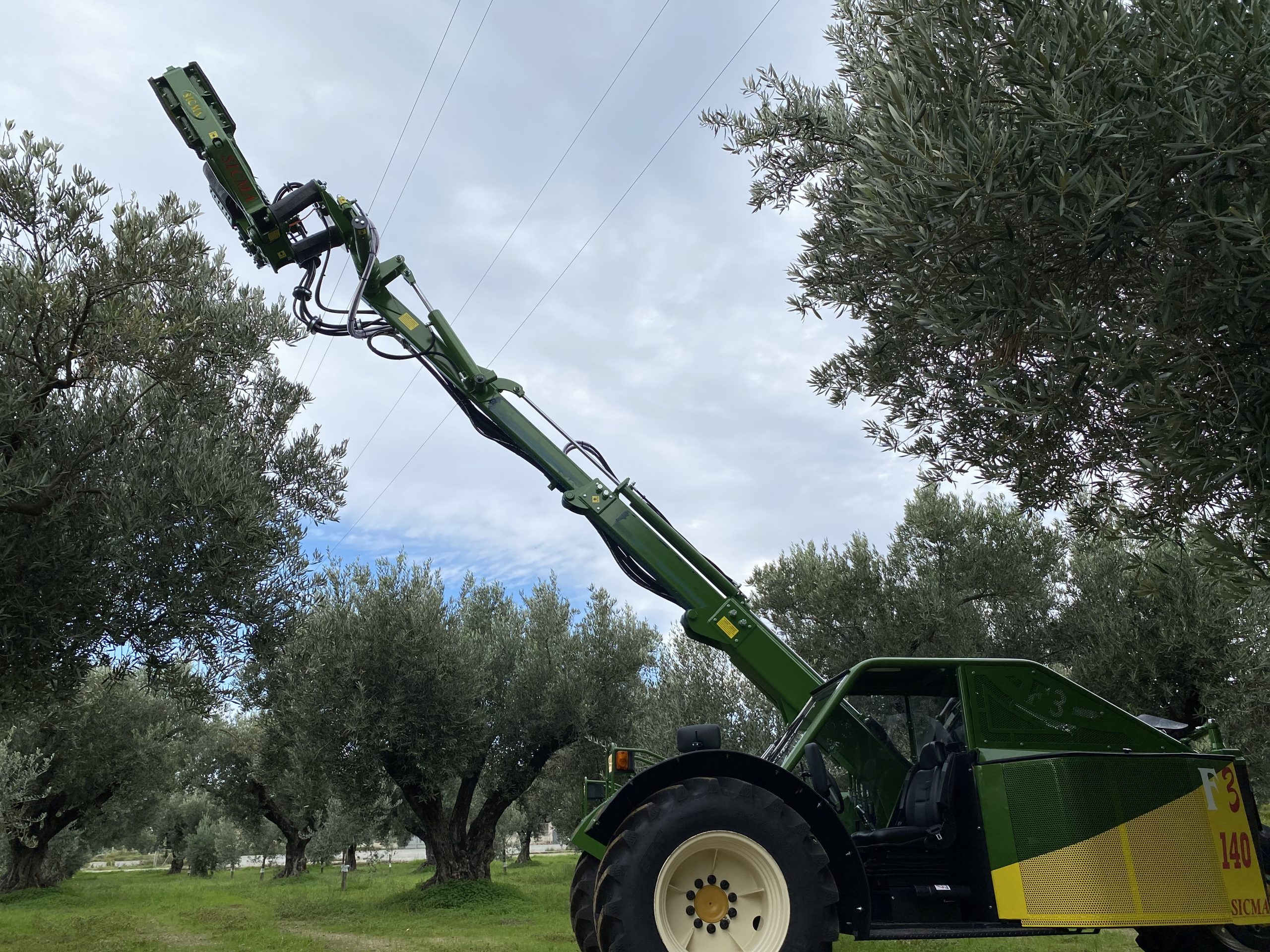

The self-propelled F3 is the Sicma’s top harvester, available with 2 engines, 84 kW Kubota or 89 kW Iveco, both in compliance with the TIER 5 regulations. It is characterized by the independent 3-wheel drive and the rear steering wheel.

The F3 harvests indifferently olives, nuts (i.e. walnuts, almonds, pecans, macadamia, etc.), sour cherries and other hanging fruits. It works in different growing conditions, either on flat or sloping grounds, exploiting the power of the engine and the exclusive handling of the 3-wheel system which allows high maneuverability, even in reduced spaces.

The F3 is approved by the Italian Ministry of Transport and Navigation and falls within the requirements for the Industry 4.0 incentives.

The F3 can be equipped with standard, overturning or telescopic arm with double extension (triplex arm), other than the standard or balancing reverse umbrella, hydraulic lever distributor, electro-hydraulic joystick, rear camera with monitor in the cabin, etc. Once harvest is complete, the drive unit of the F3 can be coupled with different devices, for instance pruning bars for hedging & topping, forks, etc ...................

 Configure yours now !!!

Technical Characteristics of F3 125 and F3 140:

TECHNICAL CHARACTERISTICS F3 125 F3 140
ENGINE Diesel, Kubota V3800, Turbo Common Rail, STAGE IIIB (3.770 cm3, 84.8 kW, 4 cylinders) Diesel, Iveco FPT, N45 Stage IV Final - (4.500 cm3 - 89 kW, 4 cylinders)
CHASSIS Monoblock in tubulars and sheets. Open cabin and roll-bars
TRANSMISSION Hydrostatic, independent 3-wheel drive. The rear wheel steers
CONTROLS Steering wheel, motion pedal and vibration joystick. Service hydraulic lever distributor
VIBRATING HEAD New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
PLIER OPENING 60 cm 65 cm
TIRES 405 x 70 - 20” Front 440 65 R24” - Rear 440 65 R20”
SIZE & WEIGHT F3 125 F3 140
TOTAL LENGTH 5.500 mm and 7.700 with telescopic arm overturned or retracted, respectively
MAX WIDTH 2.280 mm (without reverse umbrella)
CASE CAPACITY (IF EQUIPPED WITH UMBRELLA) 400 kg
UMBRELLA DIAMETER Ø 5, 6, 7, 8, or 9 m
MAX RECOMMENDED UNLOADING HEIGHT 2.250 mm
HYDRAULIC EXTENSION OF THE ARM 1.000 mm (+1.000 mm with triplex arm)
TOTAL WEIGHT (WITHOUT/WITH REVERSE UMBRELLA) 5.415 kg/6.150 kg 5.980 kg/6.730 kg

OPTIONAL:

    • Closure pressure jaw valve
    • Electro-hydraulic joystick
    • Triplex arm double extension
    • Hydraulic balancing reverse umbrella (with cylinders)
    • Umbrella bar extensions
