Sicma & MINI AGRI F.lli Dieci 26.6

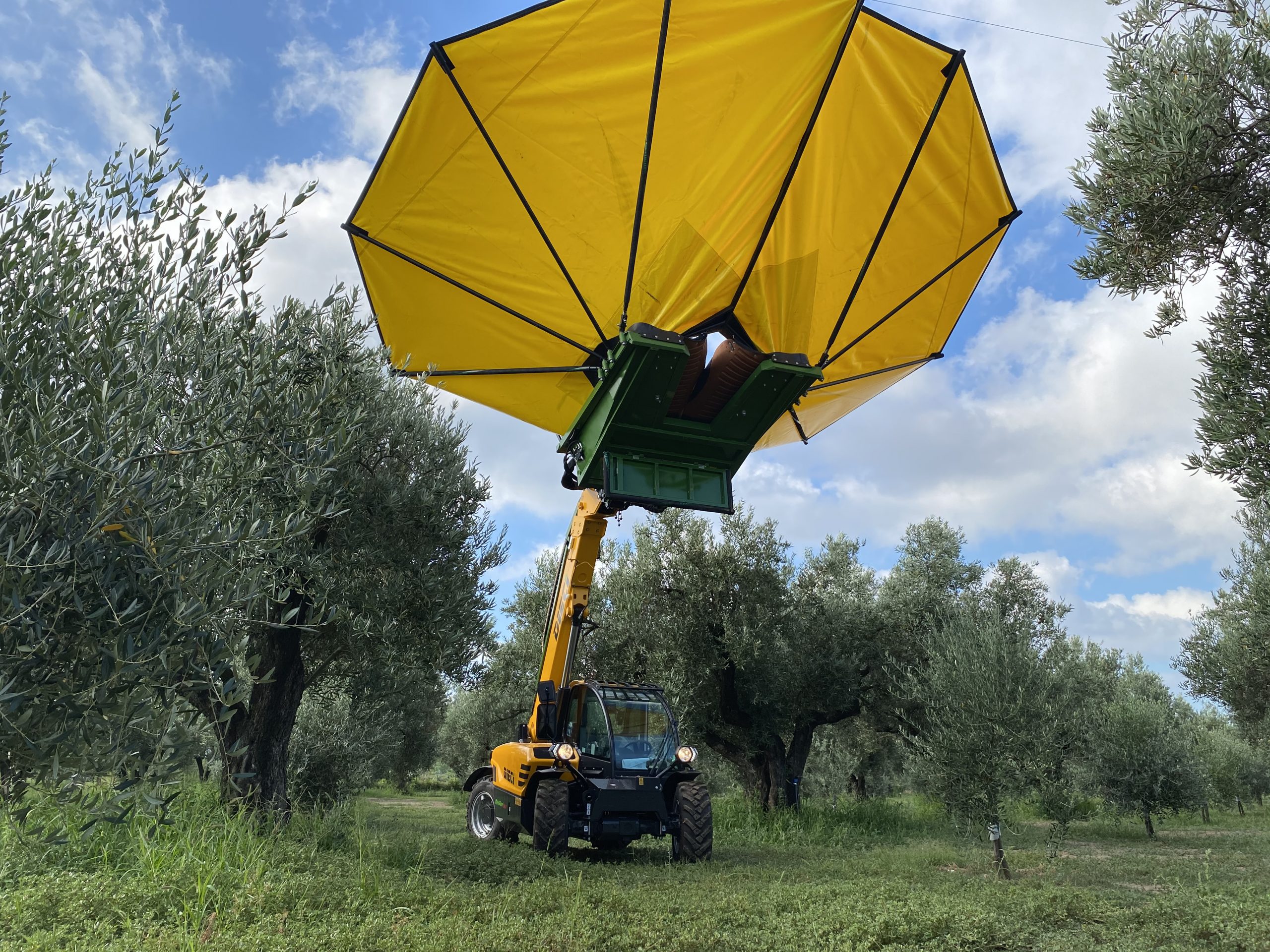

MINI AGRI is the “mini telehandler“, designed to meet the needs of small works: greenhouses, nurseries, horticulture, poultry farming etc. It is a vehicle that fits perfectly in tight and difficult spaces. Versatility and manageability, the strengths of this telescopic forklift that now also comes with the Sicma vibrating head (and umbrella as optional) for the harvest of olives and hanging fruits. Once harvest is completed, the handler can be coupled with the range of accessories offered by the company DIECI (lifting hooks, various types of pliers, excavating and aggregate shovels, winches and baskets).

The cabin, the most spacious in its category, ROPS - FOPS approved, is designed to guarantee a high level of comfort, thanks also to the new door in DSCS (Double Skin Composite System), an innovative ultralight composite material created by the Research Center and Development Ten.

The dual objective of significantly lightening the vehicle, improving its performance, and considerably increasing the thermal and acoustic insulation, comfort and roominess is obtained by using this material.

Sicma srl & F.lli Dieci...a win-win combination, exclusive.

TECHNICAL CHARACTERISTICS:

ENGINE: Diesel, Kubota V3307 Stage V DCI-1, Turbo Common Rail (3.331 cm3, 4 cylinders, 54,6 kW (73 HP) @ 2.600 rpm
TRANSMISSION: Hydrostatic with variable flow pump. Automatic hydrostatic motor Elettro-hydraulic inverter
HYDRAULIC CIRCUIT: Tank of 70 L. gear pump at 80 L/min oil flux - max 230 bar
MAX. LIFTING CAPACITY: 2.500 kg
MAX LIFTING HEIGHT: 5.780 mm
HORIZONTAL OUTREACH: 3.250 mm
MAX SUPERABLE SLOPE: 40°
MAX SPEED: 30 km/h

OPTIONAL:

    • Kit vibration: predisposition with catenary, hydraulic and electric circuits. This option is available only if combined with the vibrating head at order
    • Vibrating Head New Generation at high frequencies, self-centring and self-braking
    • Reverse umbrella (ø 5, 6, 7 or 8 m)
    • Air Conditioned
    • Umbrella extension bars
  •

Photogallery Sicma & MINI AGRI F.lli Dieci 26.6

Videogallery Sicma & MINI AGRI F.lli Dieci 26.6
